INTRODUCTION

To achieve higher precision you can draw graphics on a printer since printers usually have a much higher resolution, for example 1200x1200 dpi, where a typical screen resolution is around 100 dpi. The printing of turtle graphics works in a way where graphic operations are printed onto paper as high-resolution vector graphics instead of being displayed on the screen. For this, you can define a function with any name that contains all of the instructions for creating the image. When it is called directly, the image appears on the screen. To print, call printerPlot() with the function name.

A NON-FIRE-BREATHING DRAGON

To show a fun example of high-resolution printing, let the turtle draw a complicated picture called the dragon curve. Although you could also make this curve by folding a strip of paper, it is much easier with computer graphics. However, the implementation of the folding instructions in an algorithm is not entirely trivial [more... You can orient yourself on the Internet, what exactly is a dragon curve].

Since we are dealing with printing here, we simply use a pre-defined function to draw the curve, figure(s, n, flag). At least you can see that the curve is defined recursively and calls itself twice, although with a lower order n-1. Additionally, the function uses a parameter flag that can be 1 or -1 and that determines the drawing direction.

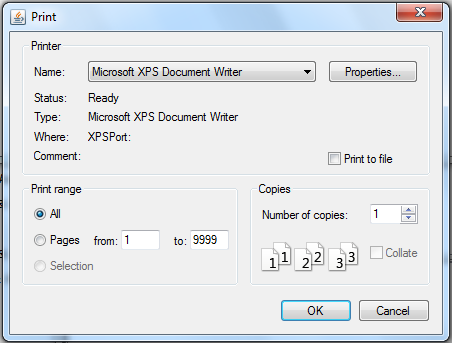

To print the image, draw it in the function doIt(). This function cannot have parameters. When you call doIt() the drawing appears on the screen, but when you pass the name doIt to the printerPlot() command the drawing is printed (without showing the turtle).

from gturtle import *

def drawFigure():
    repeat 3:
        fillToPoint(0, 0)
        rightArc(100, 90)
        right(90)
        rightArc(100, 90)
        right(90)
        left(120)

makeTurtle()
hideTurtle()
setPenColor("black")

while True:
    drawFigure()
    delay(100)
    clear()
    right(20)

MEMO

EXERCISES
